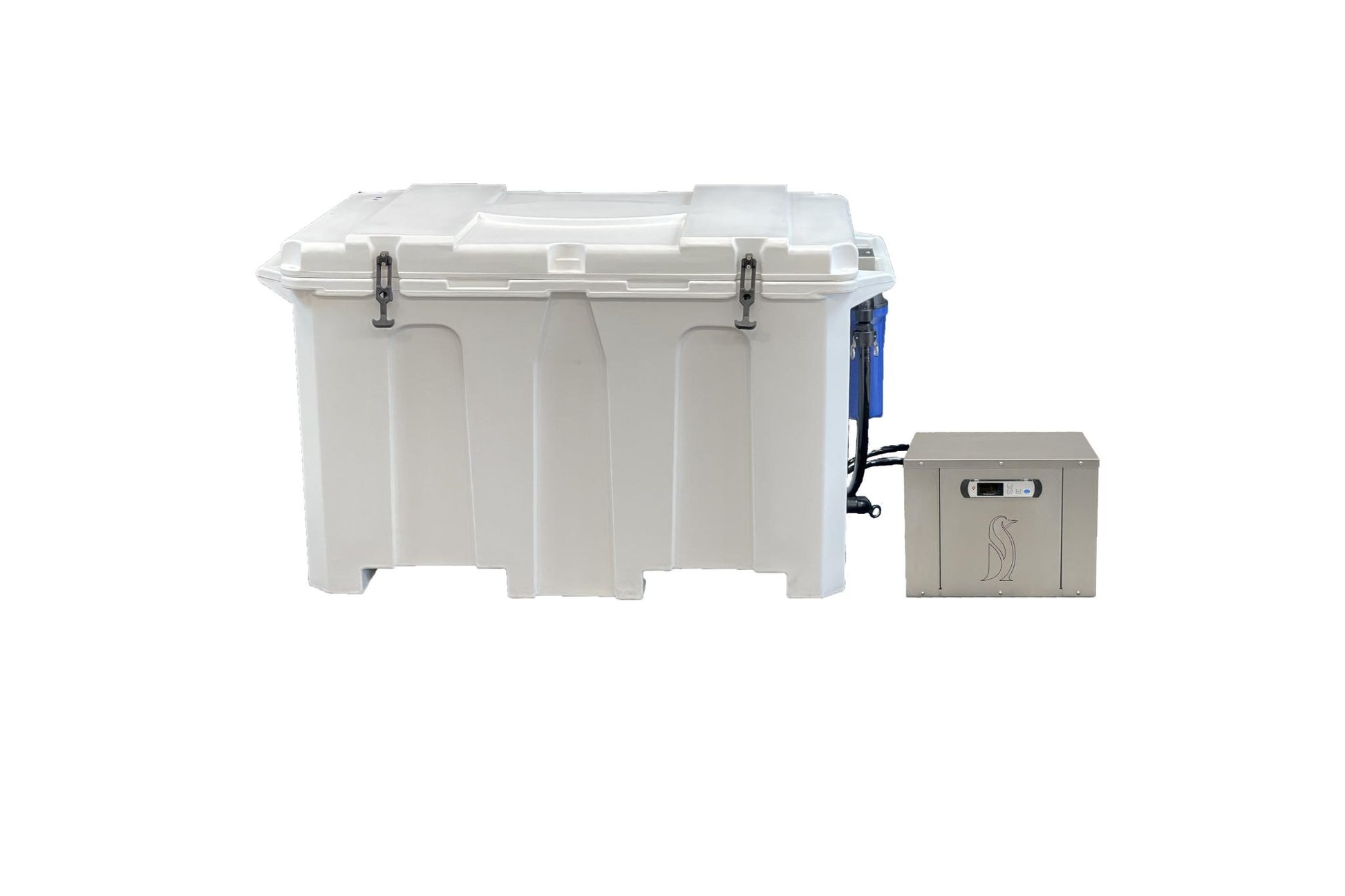

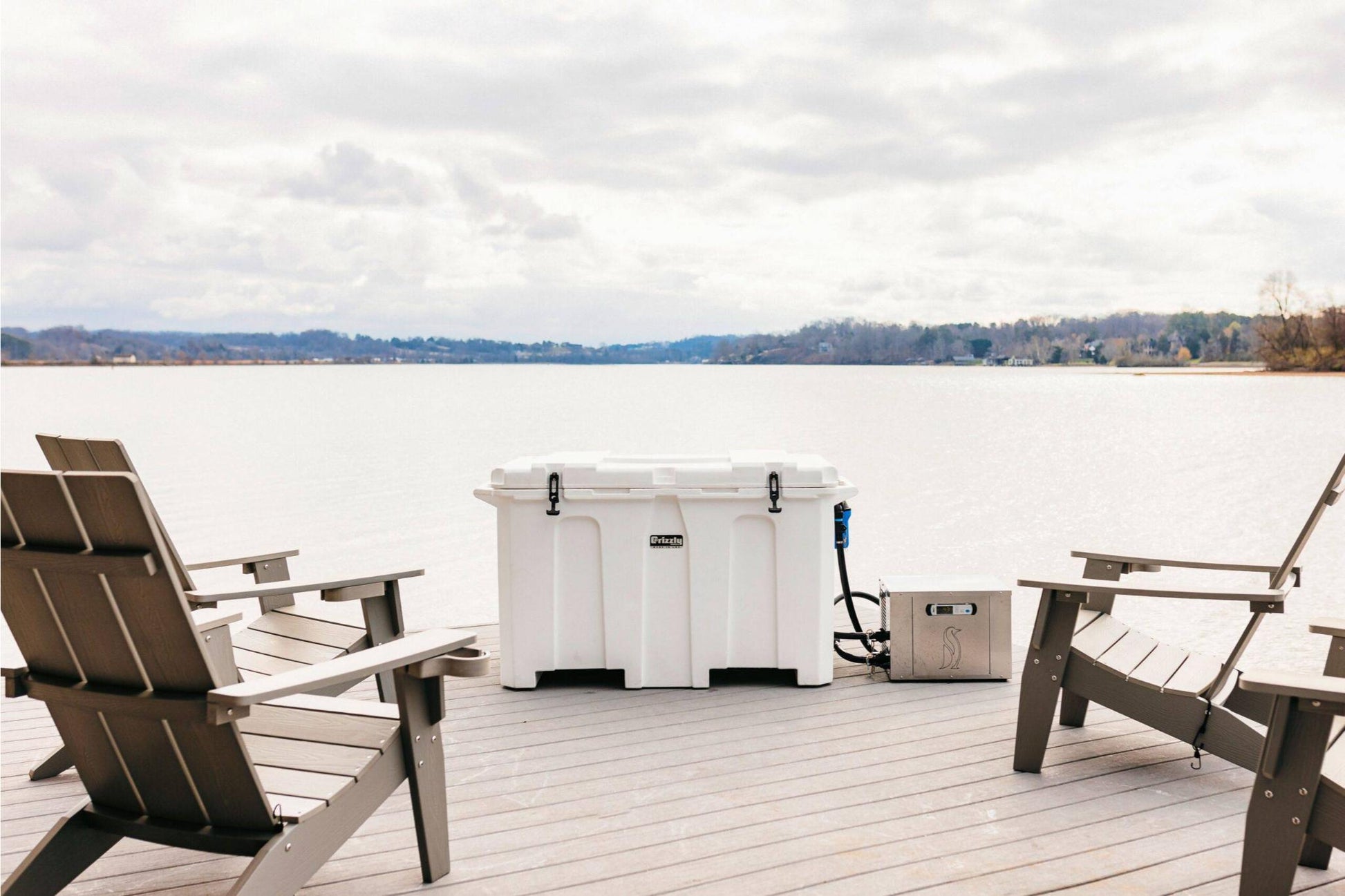

The Cold Therapy Insulated Tub Package is a complete iceless cold plunge system designed for consistent temperature control and simplified cold immersion routines.
This package pairs a 100-gallon insulated tub with a 3/4 HP high-efficiency chiller, allowing users to maintain cold water temperatures without the need for ice. Built for durability and ease of use, the system is suitable for home wellness spaces, training environments, and dedicated recovery setups.
System Components
-
3/4 HP Cold Therapy Chiller with built-in pump
- 100-gallon insulated tub
- 150-micron washable / reusable filter
- Inline debris screen
- Quick-connect hoses
Performance & Temperature Control
The chiller is capable of reaching low-40°F temperatures and, under optimal conditions, high-30°F temperatures. Performance is influenced by ambient temperature and sun exposure; reducing external heat load improves efficiency and temperature stability.
Once the target temperature is reached, the system maintains consistent cooling with minimal intervention.
Design & Maintenance
- Washable, reusable 150-micron filtration system

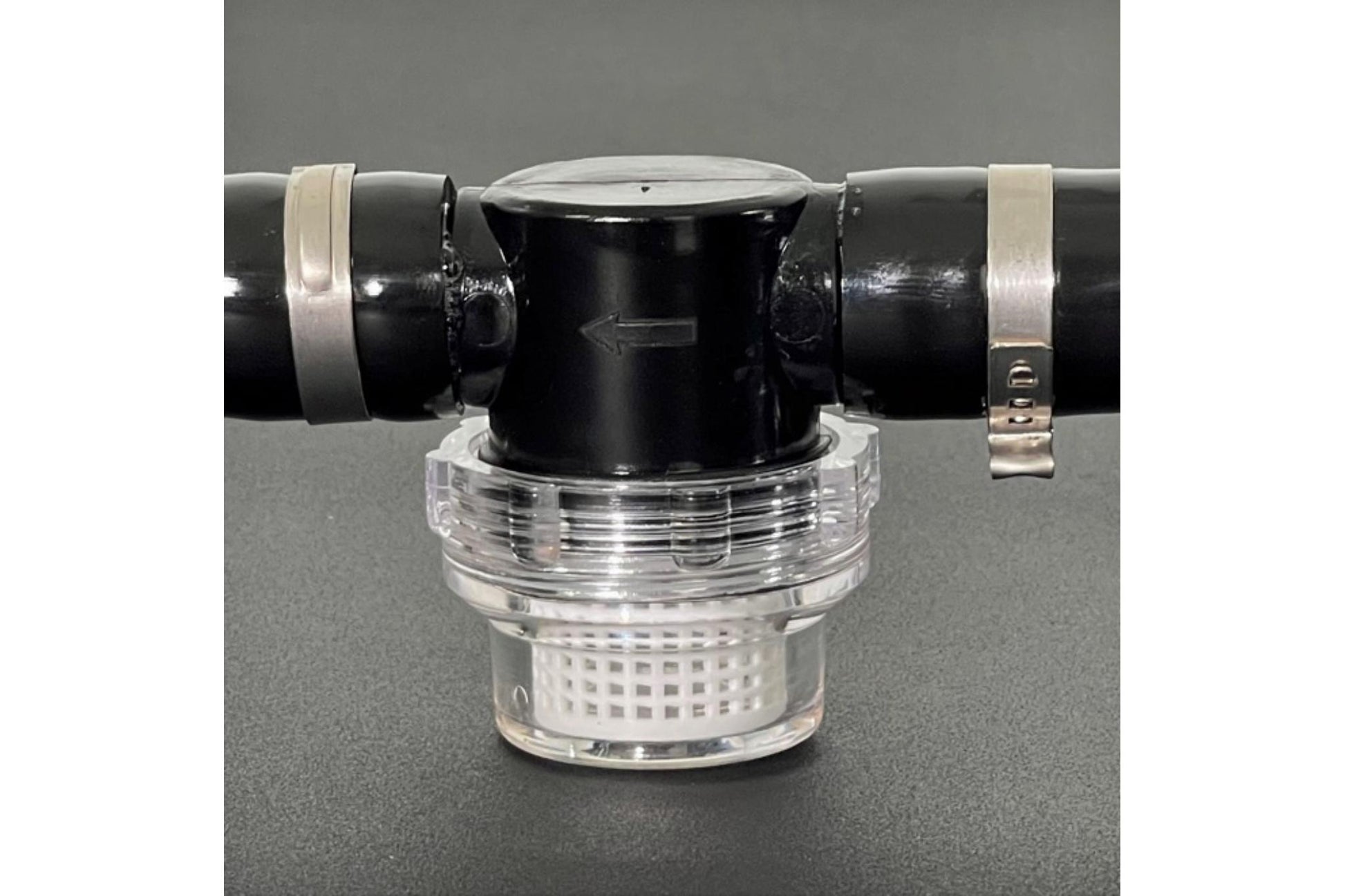

- Inline screen to capture hair and larger debris before reaching the chiller
- Continuous water circulation for stable operation
- Designed for long-term use with reduced maintenance requirements
The system should be placed in an area suitable for moisture and condensation.
Operating Cost
Estimated operating cost is approximately $15–$25 per month, based on electricity rates of $0.12/kWh.
- Compressor and fan operate only when active cooling is required
- Low-wattage circulation pump runs continuously once target temperature is reached
What’s Included

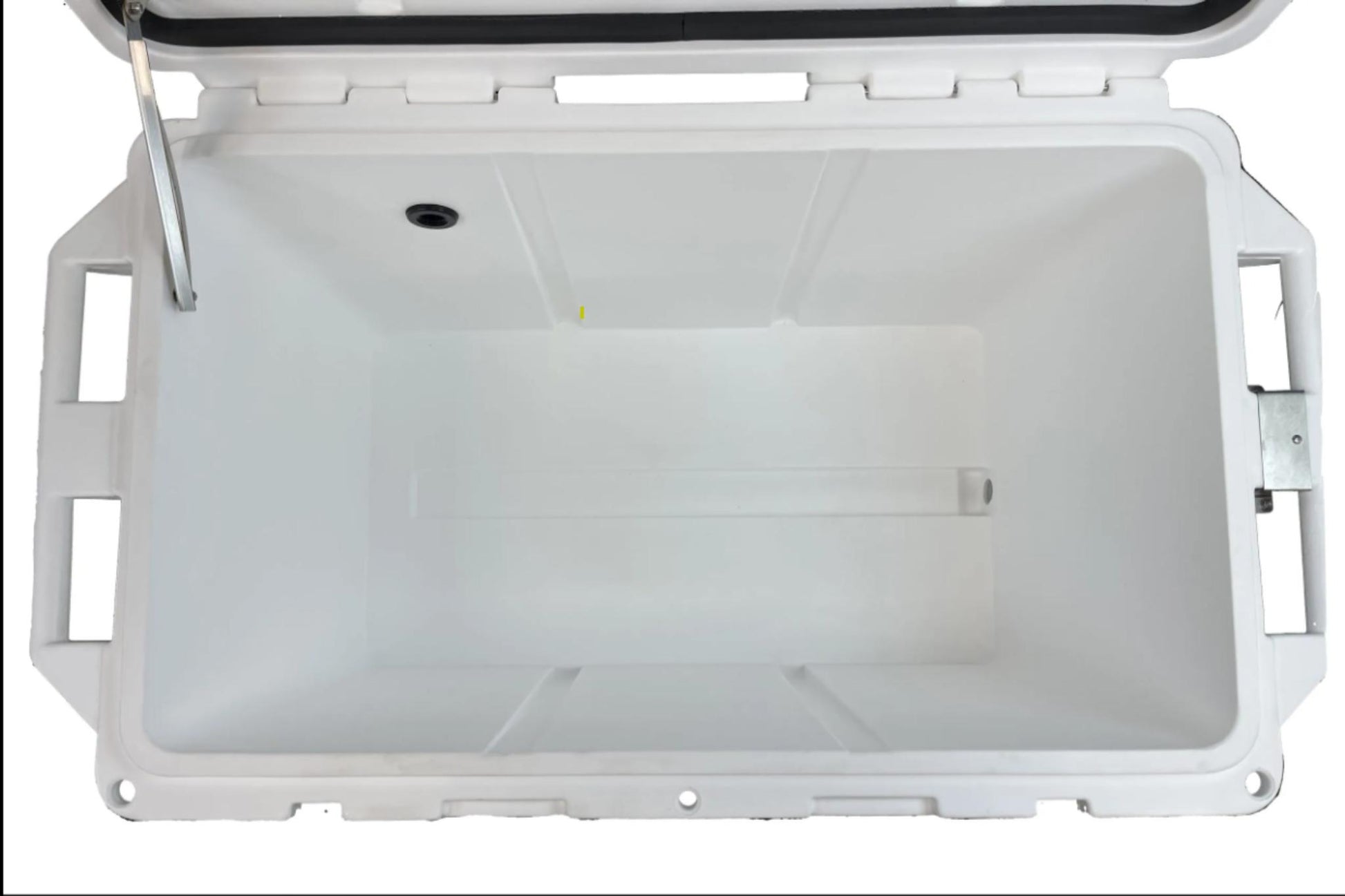

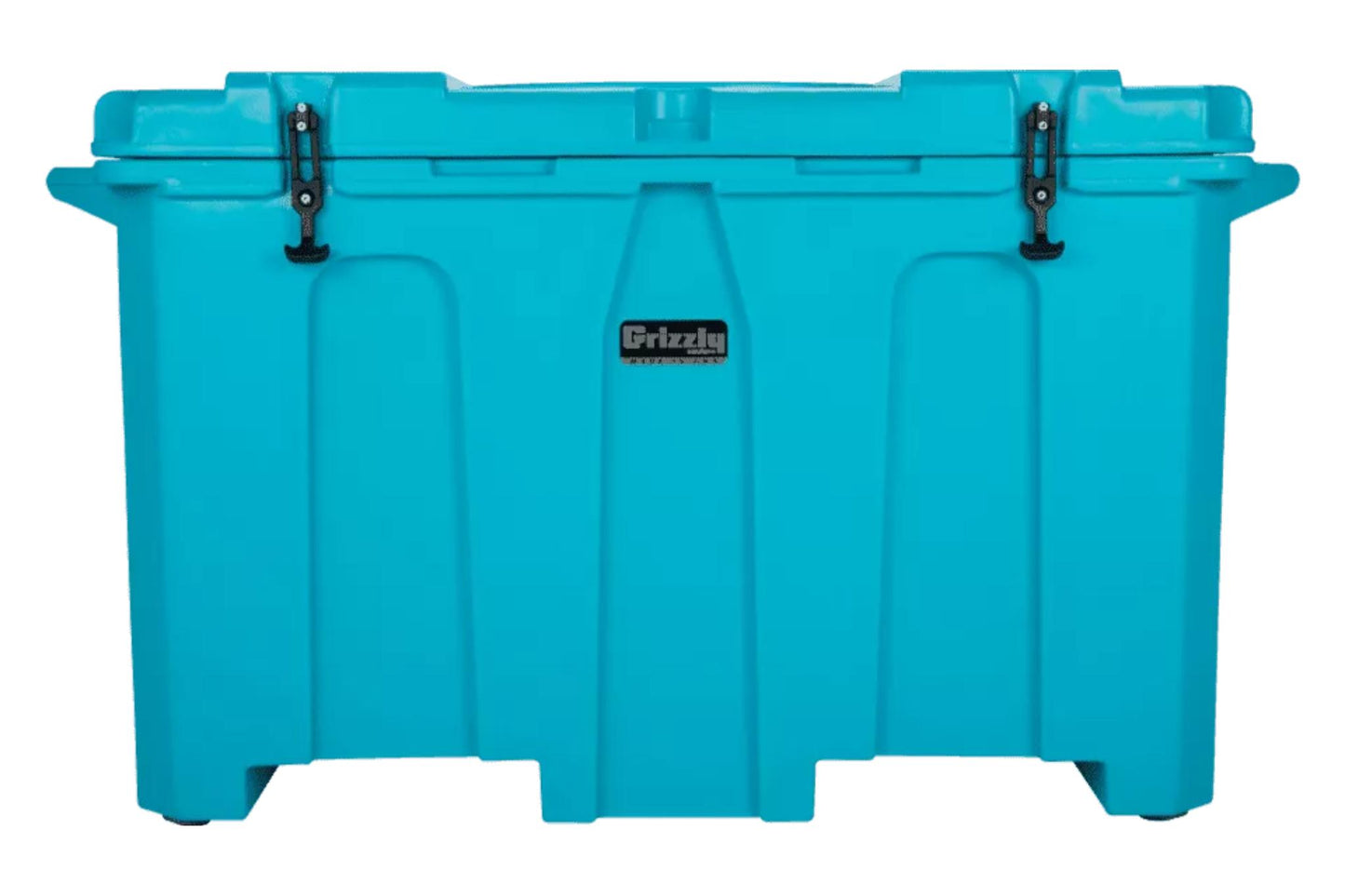

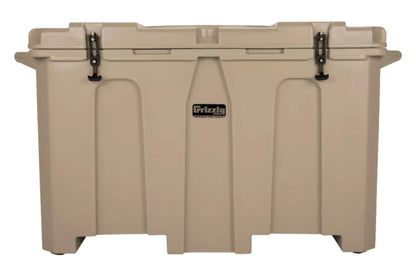

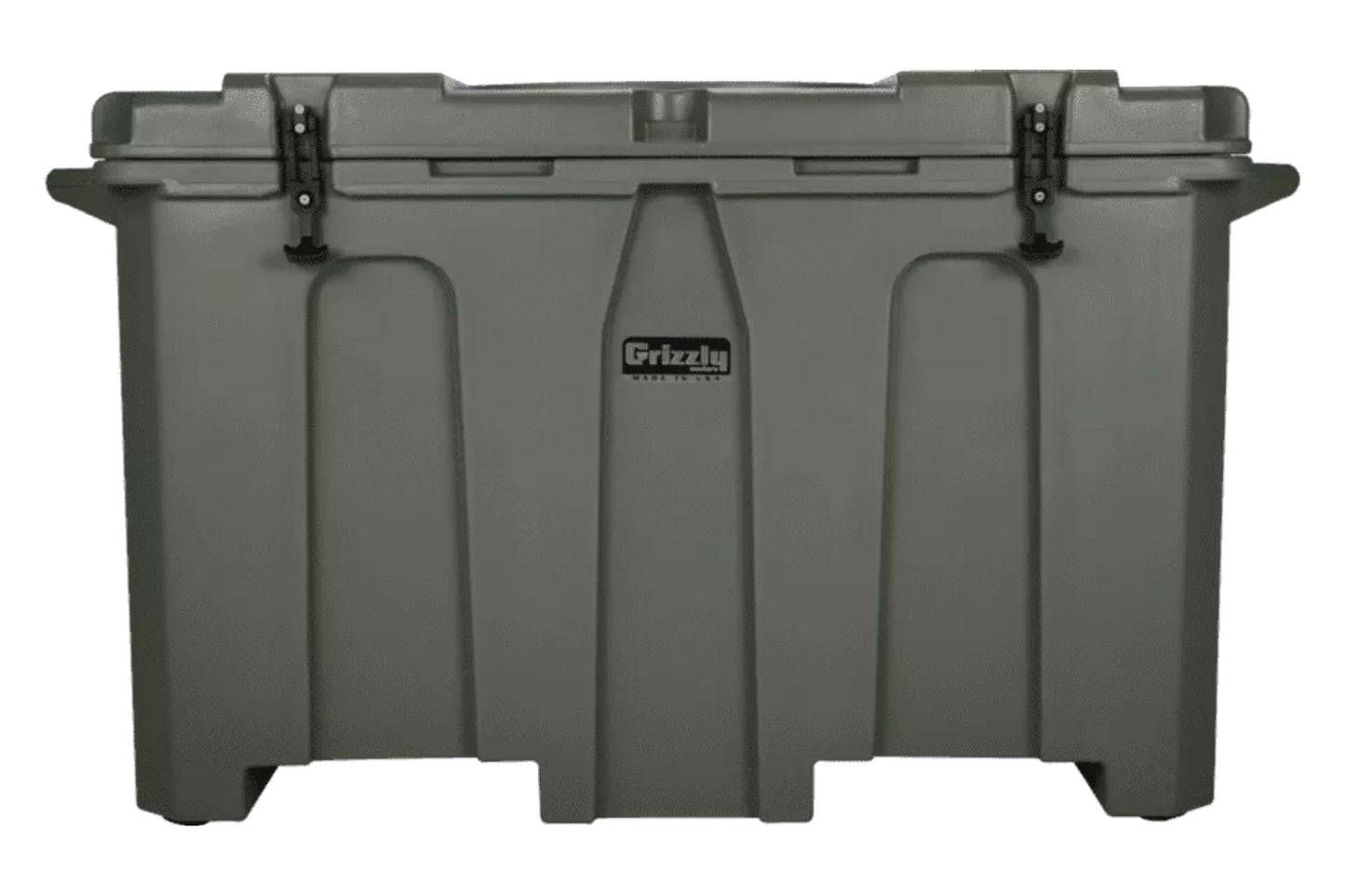

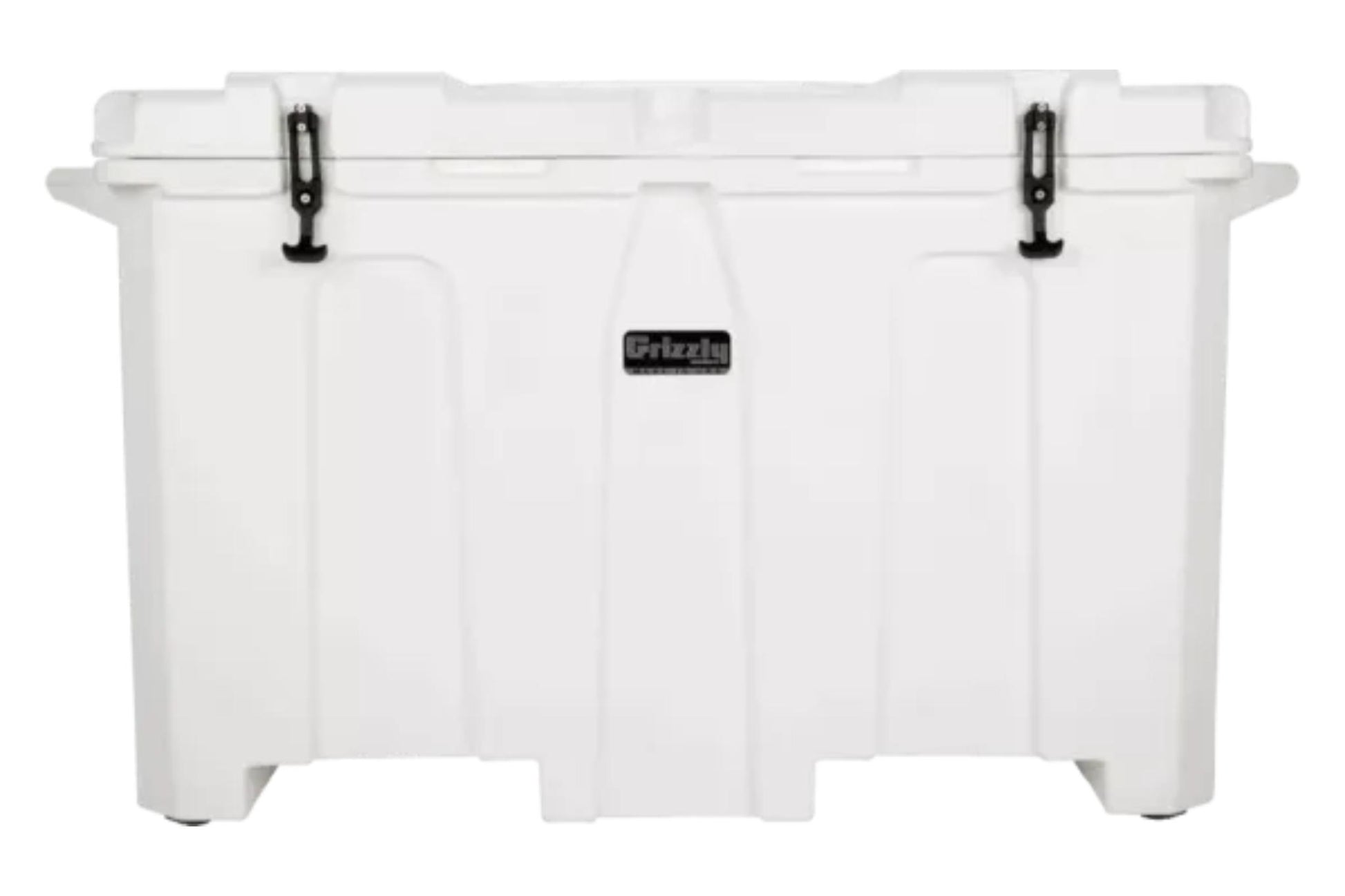

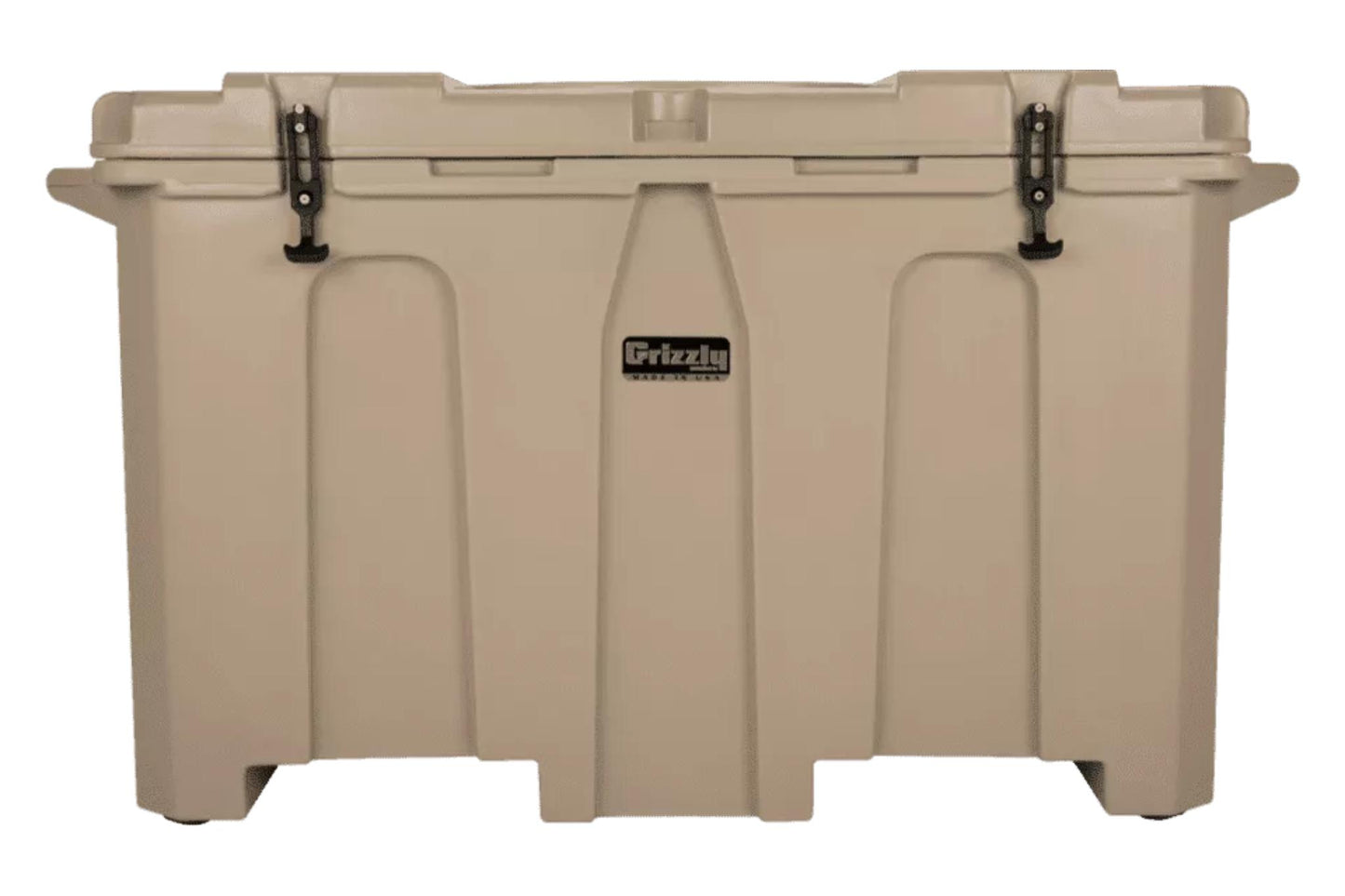

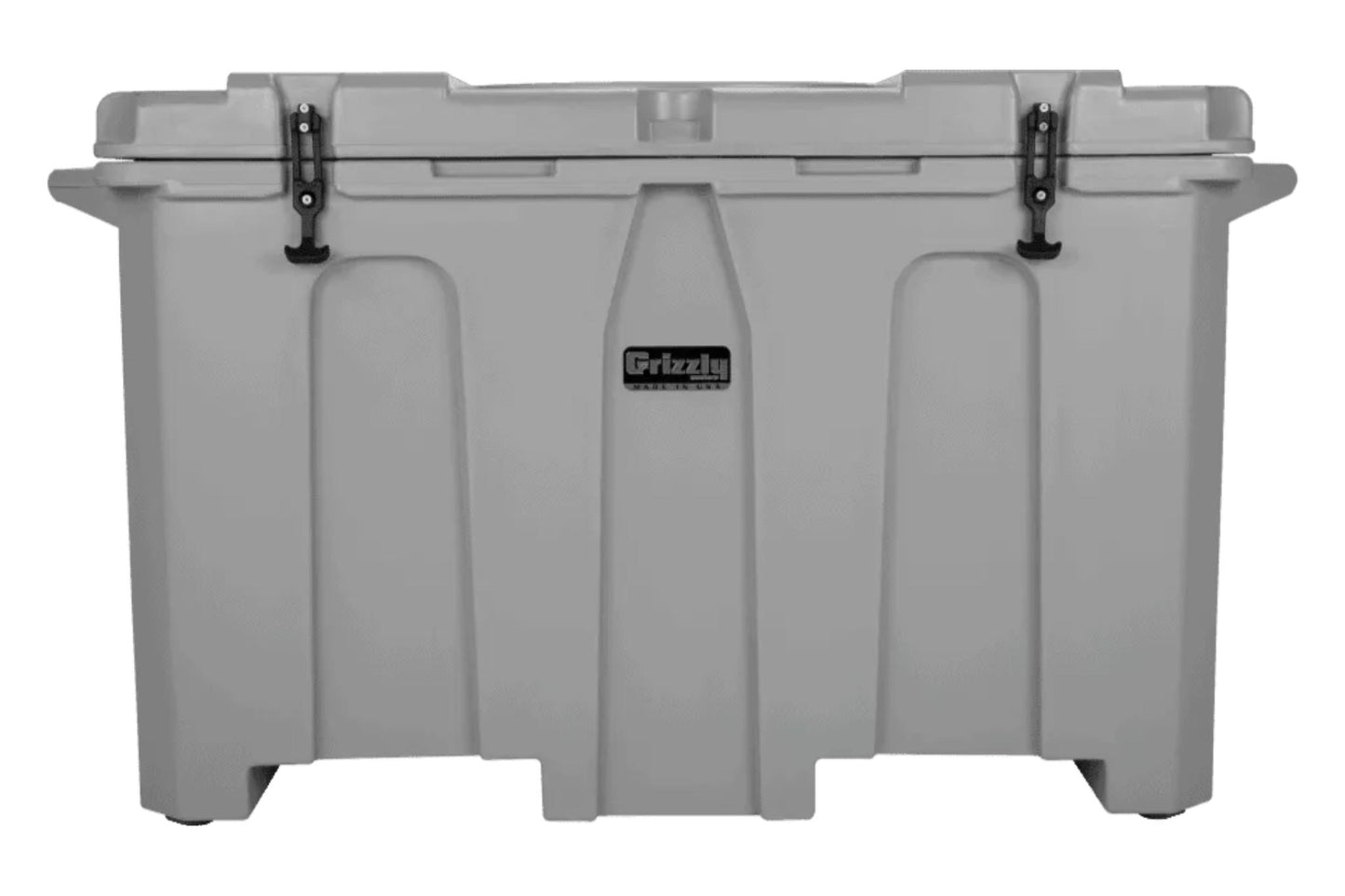

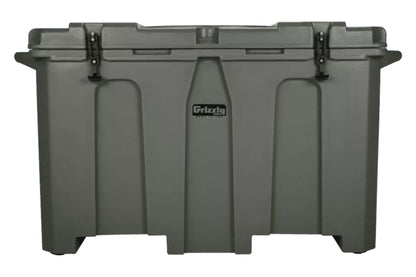

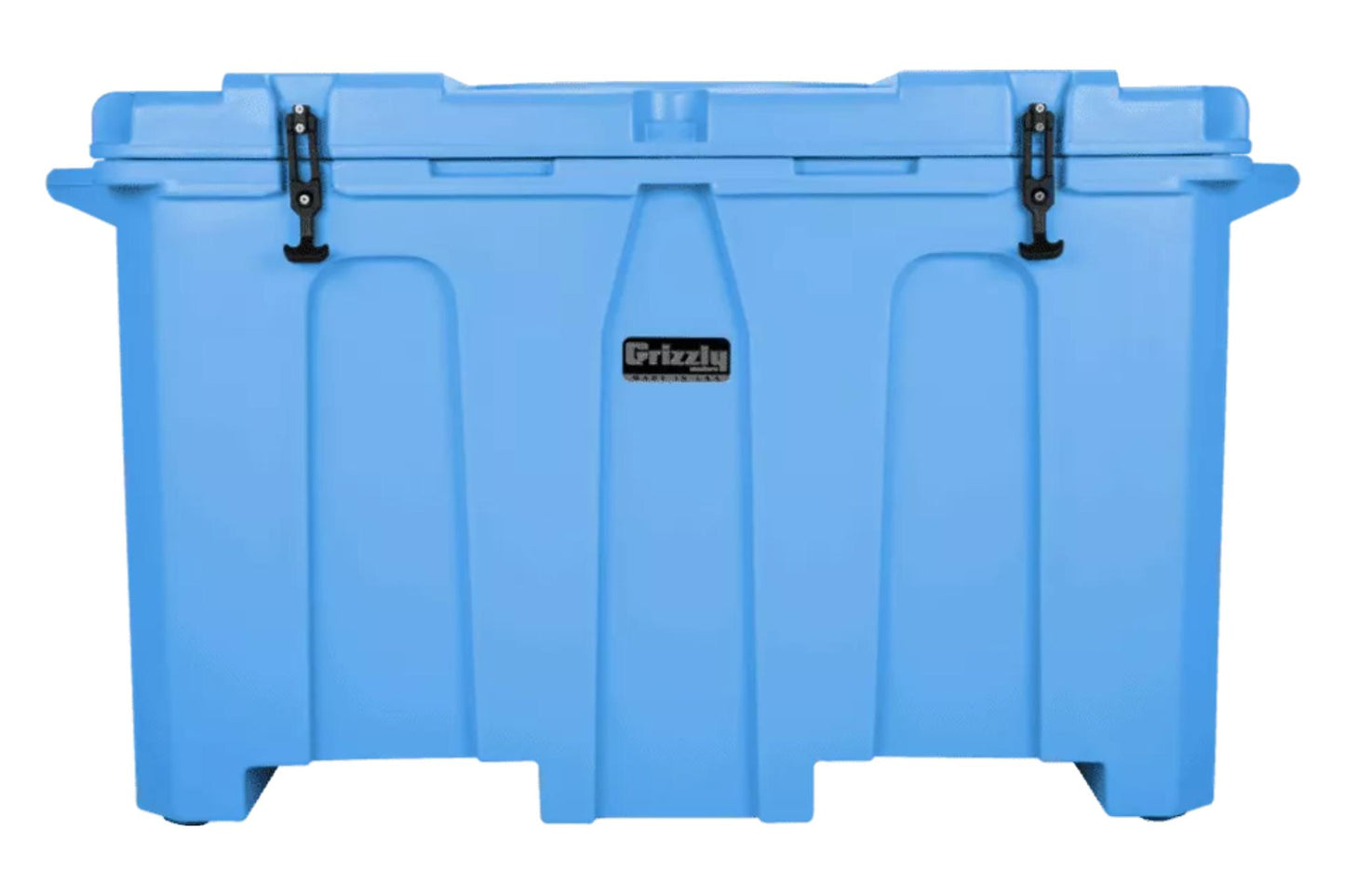

- 100-Gallon Insulated Tub
-
External dimensions: 54 in × 31 in × 32 in
-
Internal dimensions: 43.5 in × 24.5 in × 24 in

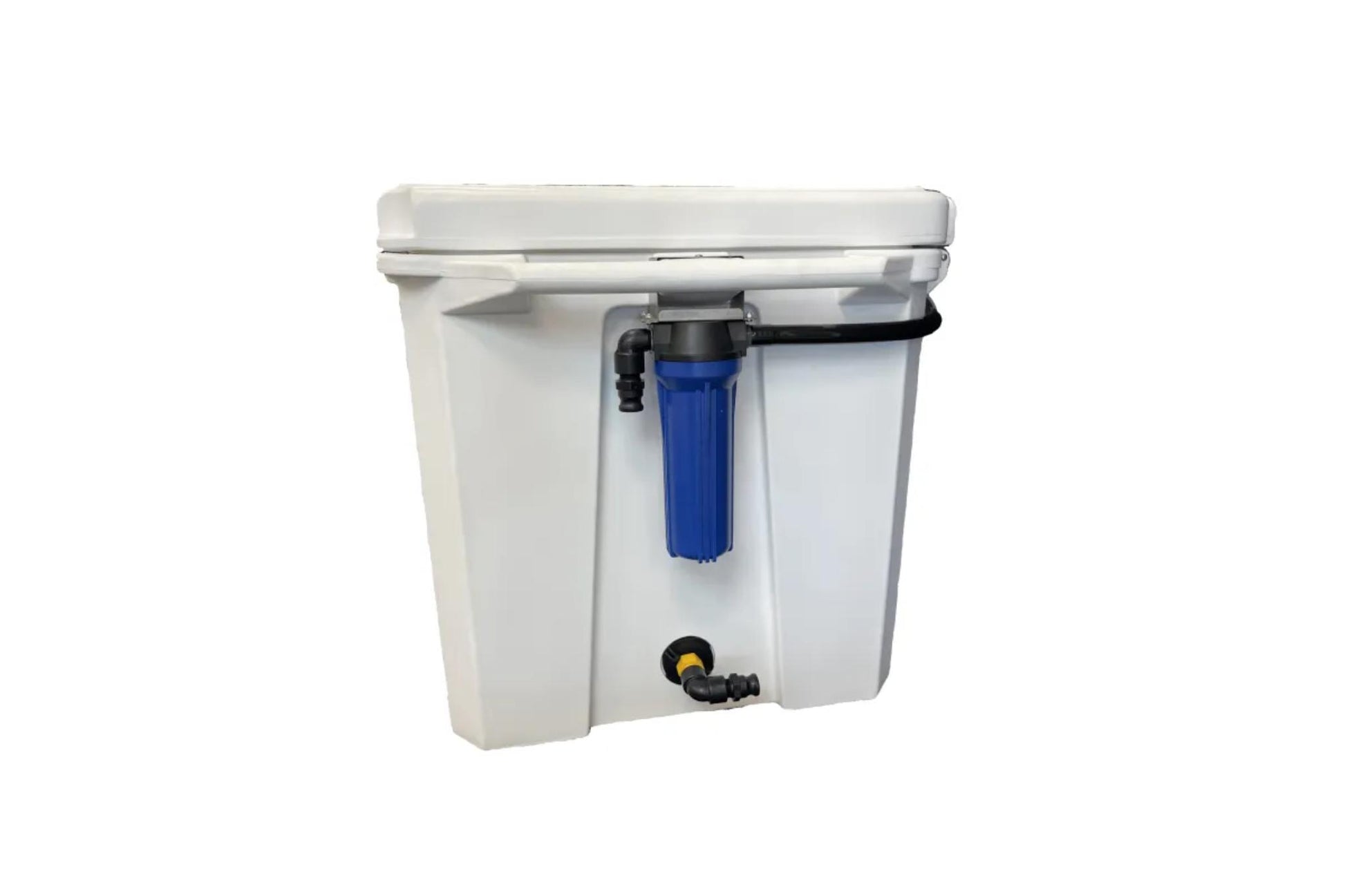

- Attached filter canister with 150-micron washable filter
- Inline debris screen
- 3/4 HP Cold Therapy Chiller with built-in pump
- Quick-connect hoses
Technical Specifications
-

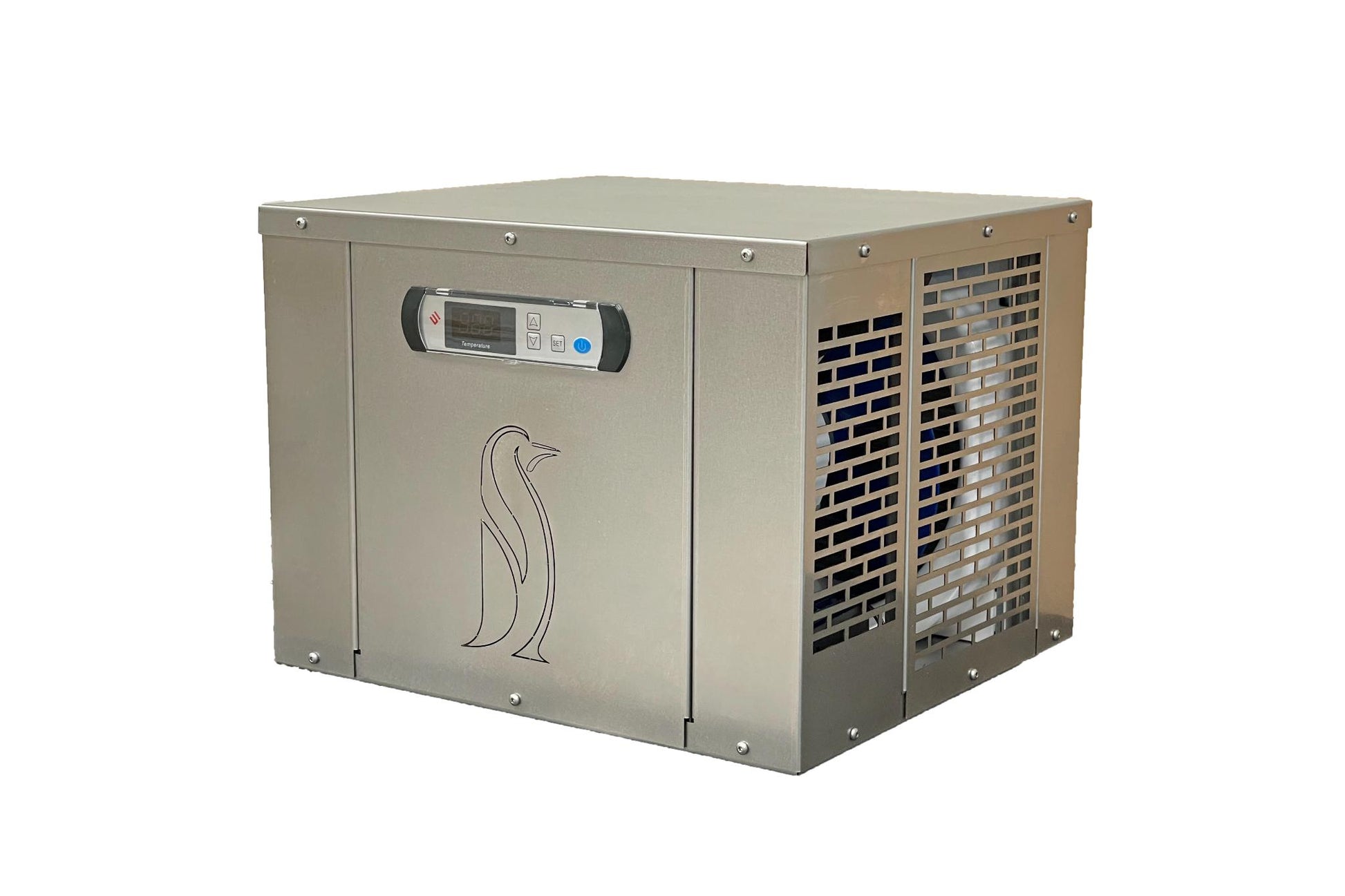

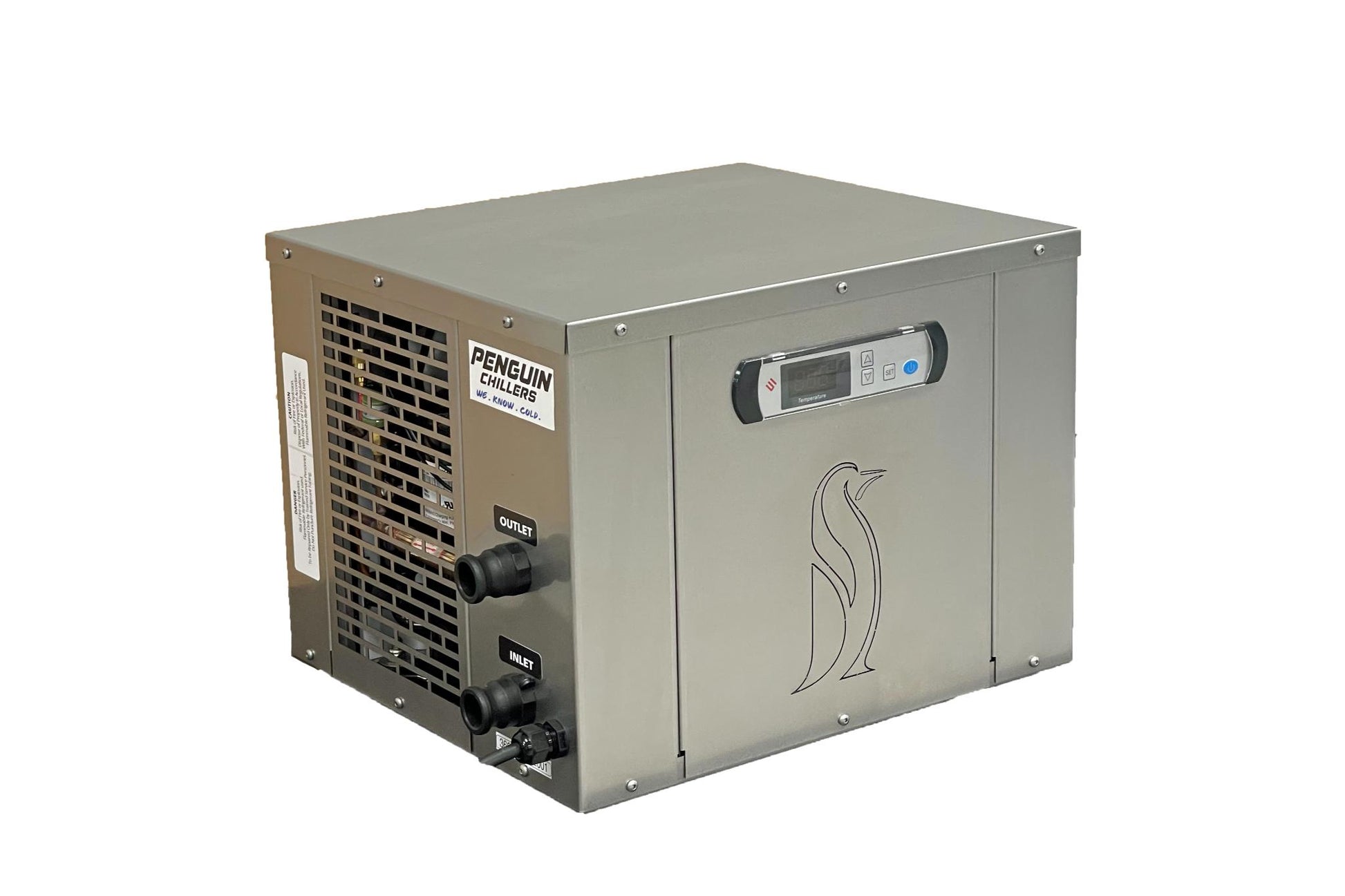

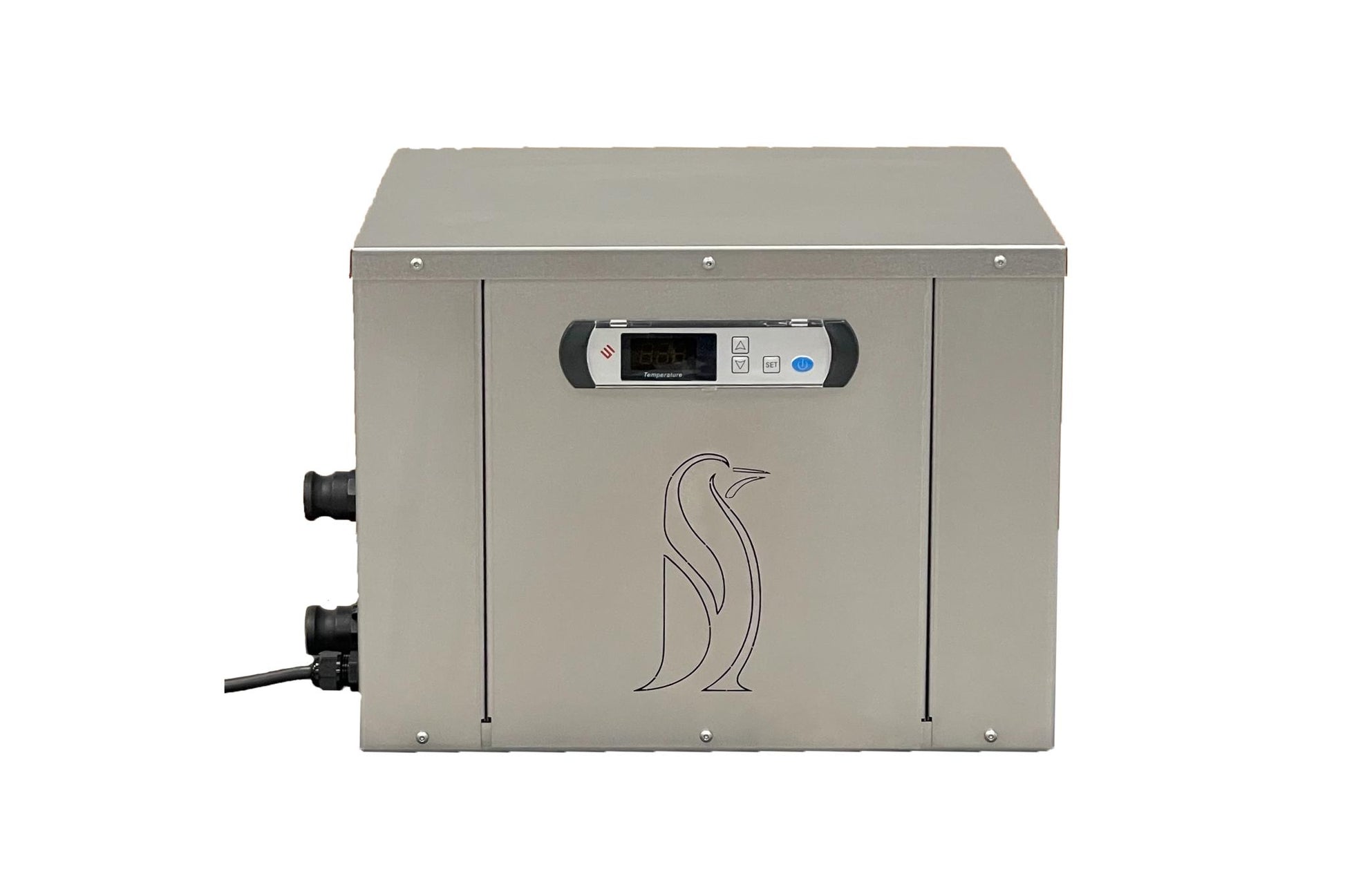

Chiller Type: 3/4 HP high-efficiency unit with built-in pump
-
Noise Level: 65 dBA
-
Electrical: 110–120 V / 450 W / 3.9 A
-
Chiller Dimensions: 14 in (W) × 20 in (D) × 12 in (H)
-
Weight: 49 lbs
-

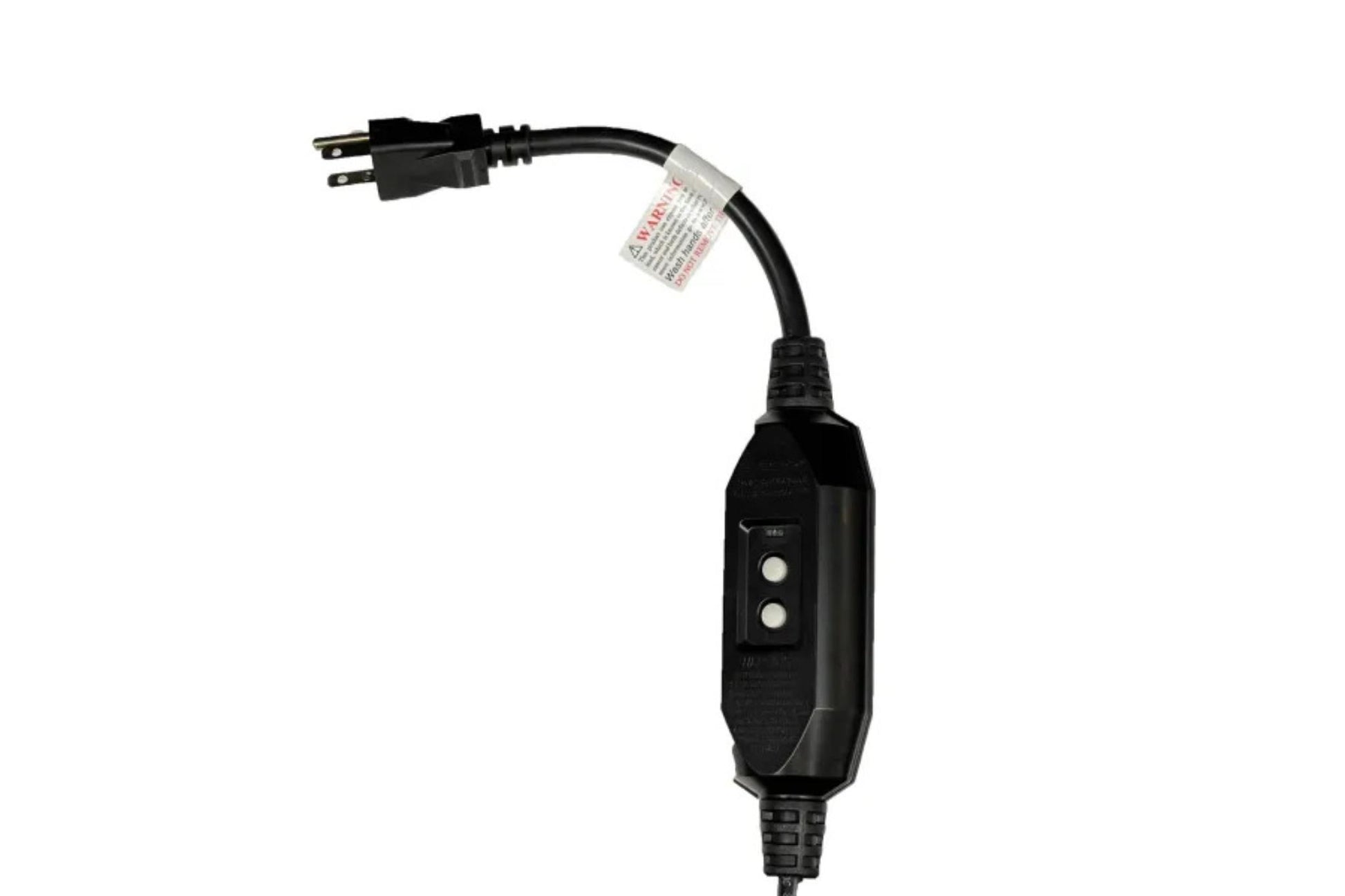

Power Cord: 10 ft with GFCI protection
-
Outdoor Rated: Yes (disconnect and fully drain when temperatures are freezing or below)
-
Warranty: 1-year product warranty
-
Manufacturing: Proudly made in the USA (Tennessee)
Installation Notes
- Place the system in an area that can accommodate moisture and condensation
- Disconnect and fully drain the chiller during freezing conditions to prevent damage
Why This System Fits Your Space
- Consistent cold water temperatures without ice
- Insulated tub for improved thermal efficiency
- Simple filtration and maintenance
- Designed for long-term residential or training use
- Made in the USA with durable components
